GM "LS" Motor Low Profile Oil Pan
GM "LS" Motor Low Profile Oil Pan
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

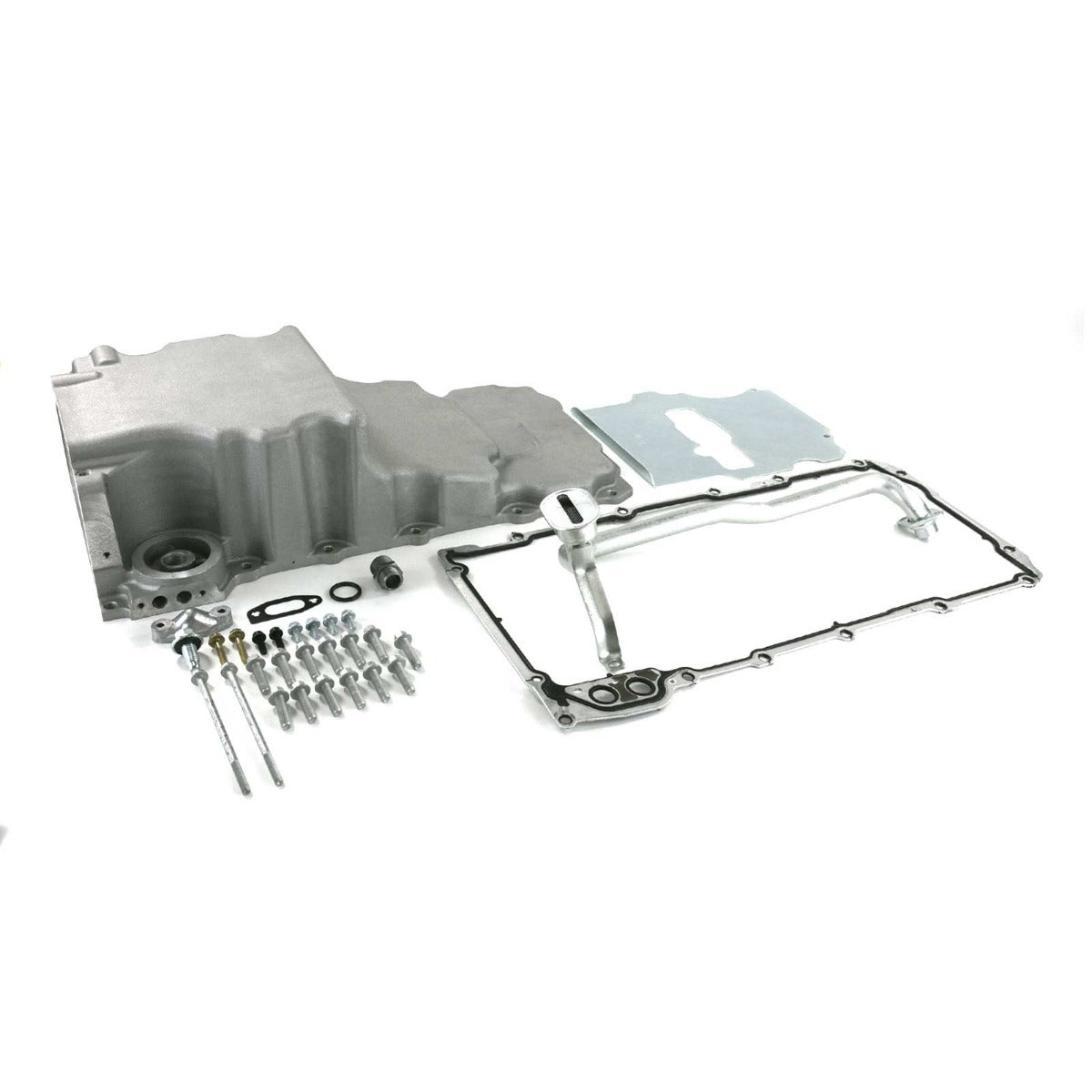

Composed of lightweight cast aluminum, low-profile, retro-fit oil pan is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan.
Specifications
| SUMP STYLE | Wet |
| SUMP LOCATION | Rear |
| SUMP DEPTH | 5.89" |
| MAXIMUM STROKE | 3.62" |
| OIL FILTER LOCATION | Stock |
| SUMP OIL CAPACITY | 5.5 Quarts |
| TOTAL OIL CAPACITY | 6.0 Quarts with Stock Filter |
| BAFFLED | Yes |
| WINDAGE TRAY | Not Included |
| OIL PICK-UP | Included |
| GASKET | Included |
| INCLUDED |
Oil Pan Gasket Sump Baffle Oil Pickup Tube Drain Plug Oil Filter Stud Oil Passage Cover Mounting Hardware |
